Fendt TRISIX Vario: The Six-Wheel Prototype That Shaped Today’s High-Horsepower Tractors
The Fendt TRISIX Vario remained a concept model, but its engineering solutions laid the groundwork for the modern Fendt 1000 Vario. Developed in response to rising demand for higher performance, the prototype introduced technologies that later became standard in Fendt’s flagship tractors.
A Concept Ahead of Its Time

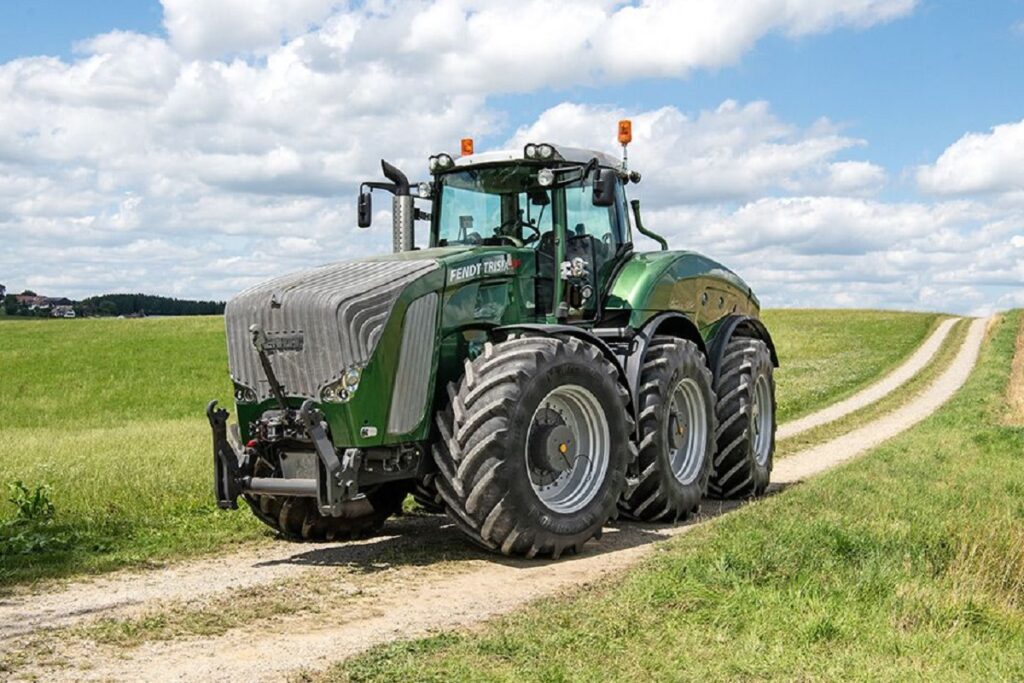

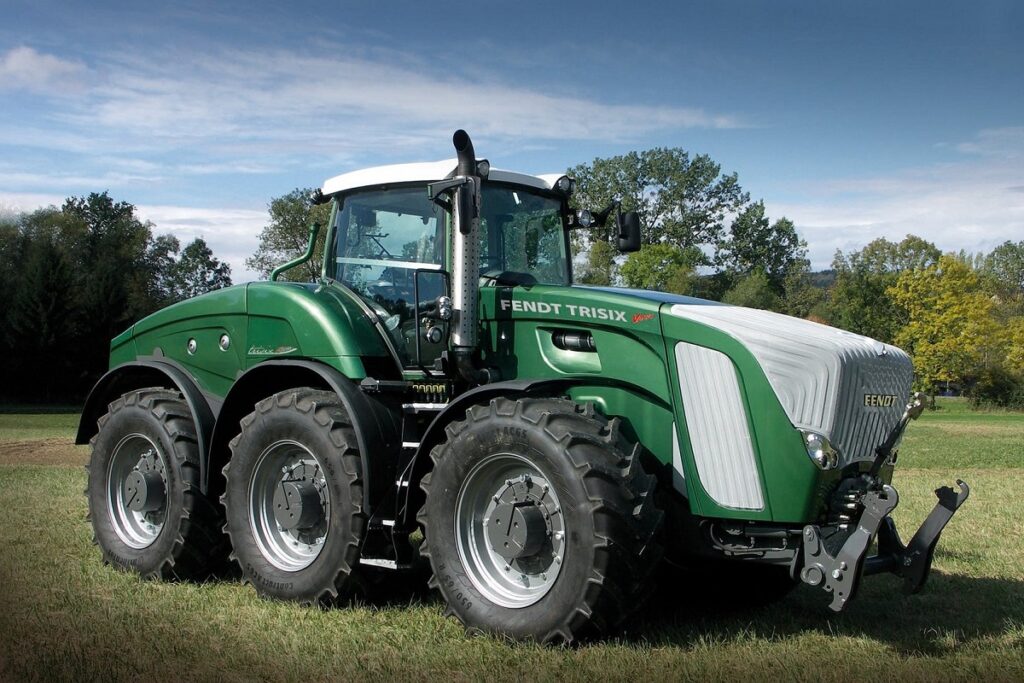

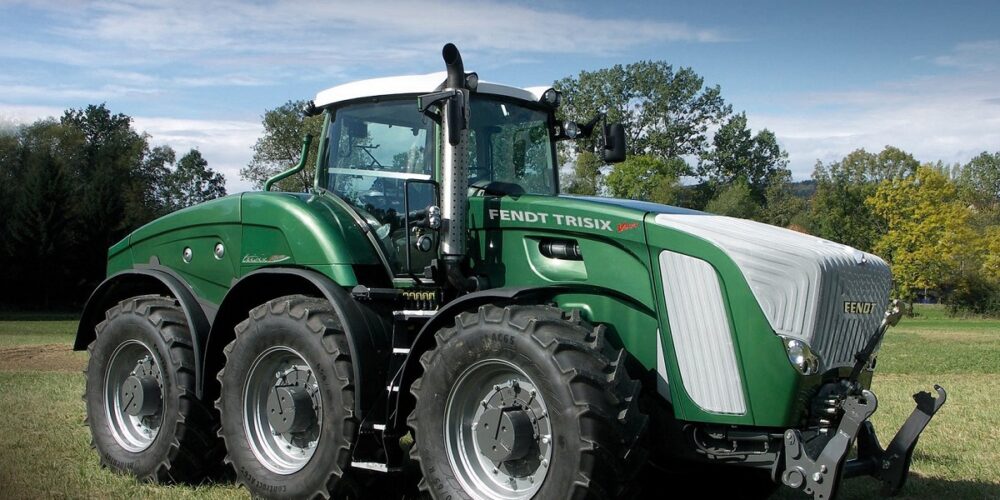

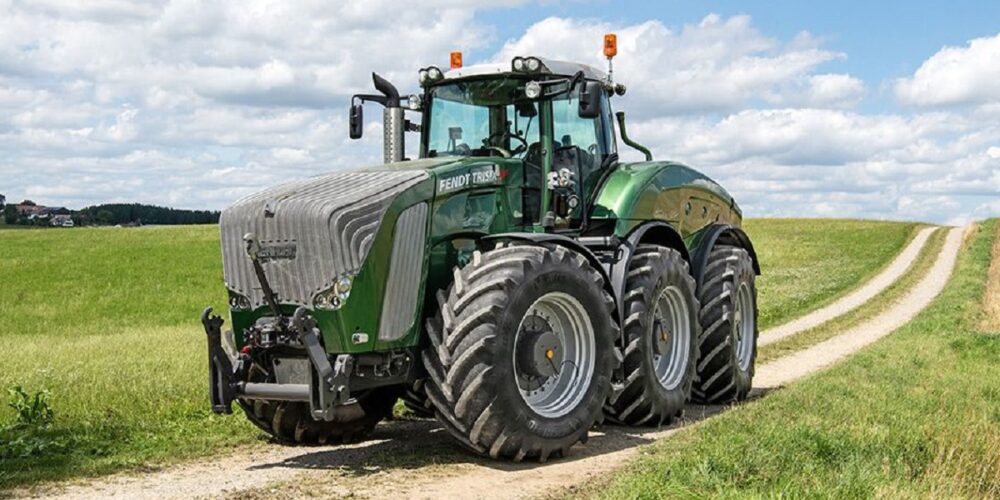

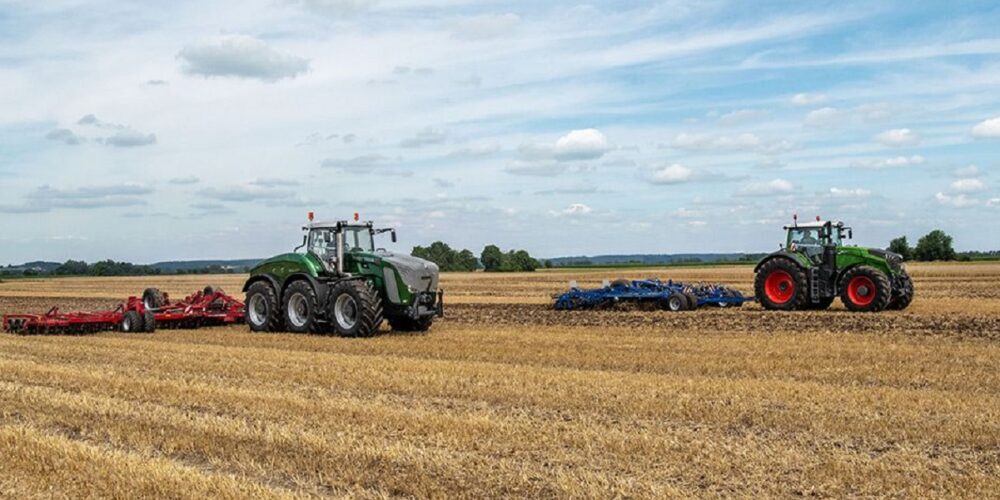

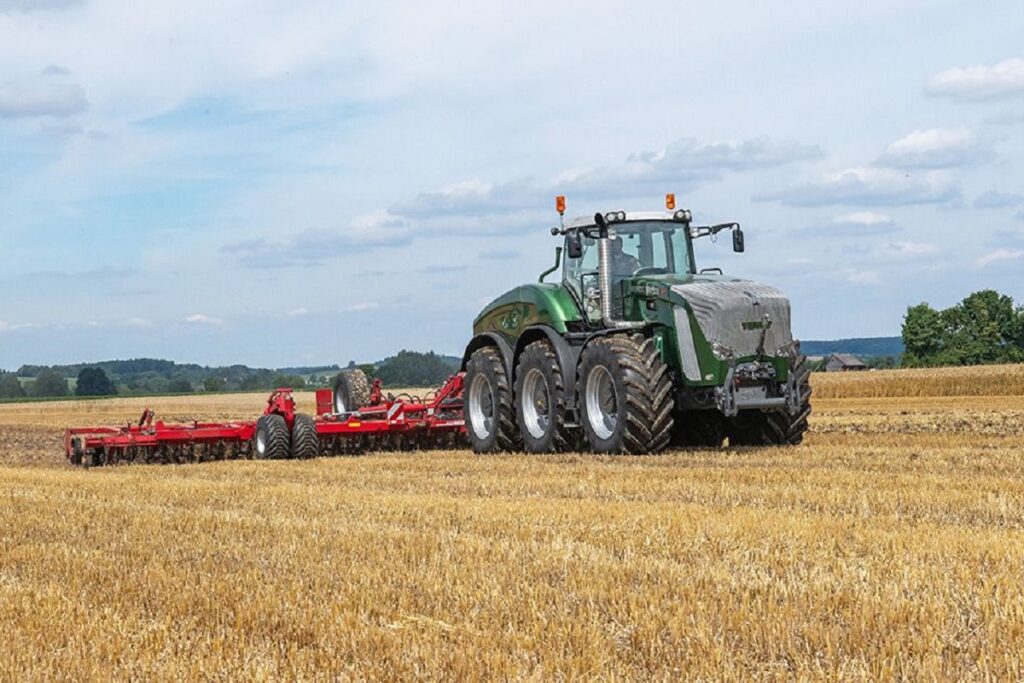

At Agritechnica 2007, Fendt unveiled one of the most unconventional tractor concepts ever presented: a six-wheel, three-axle high-horsepower machine.
The TRISIX Vario was powered by a 12.0-liter MAN engine delivering 540 HP, positioning it in direct competition with track-laying tractors and articulated high-power units—segments that dominated the upper end of the market at the time.
According to Fendt’s engineering team, it was “the first and only tractor of its kind” designed to bridge the gap between wheeled and tracked machines.
Engineering Challenge: Breaking the 300 HP Barrier
At the time of its development, conventional tractor technology faced key limitations:
Transmissions were capped at approximately 300 HP
Suitable high-capacity tires were not yet available
Tracked tractors offered traction but lacked versatility
To overcome these constraints, Fendt adopted a non-conventional architecture:

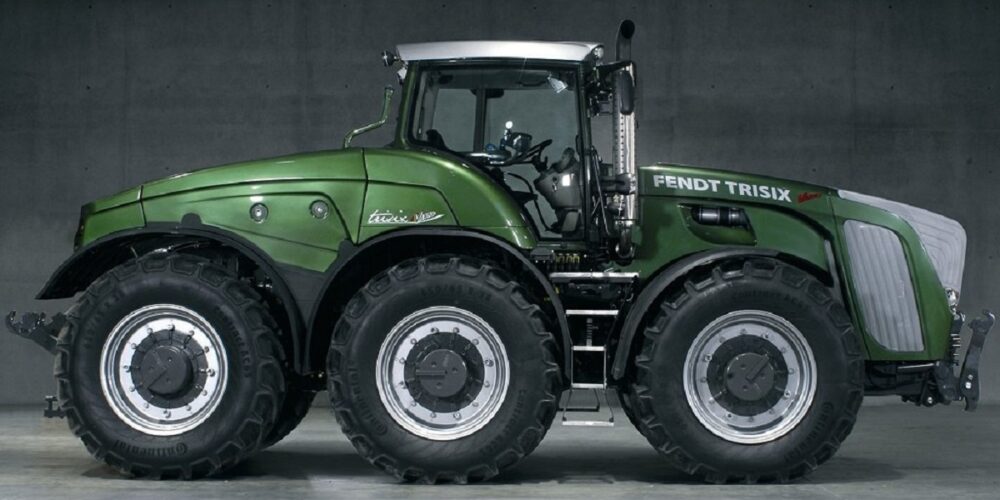

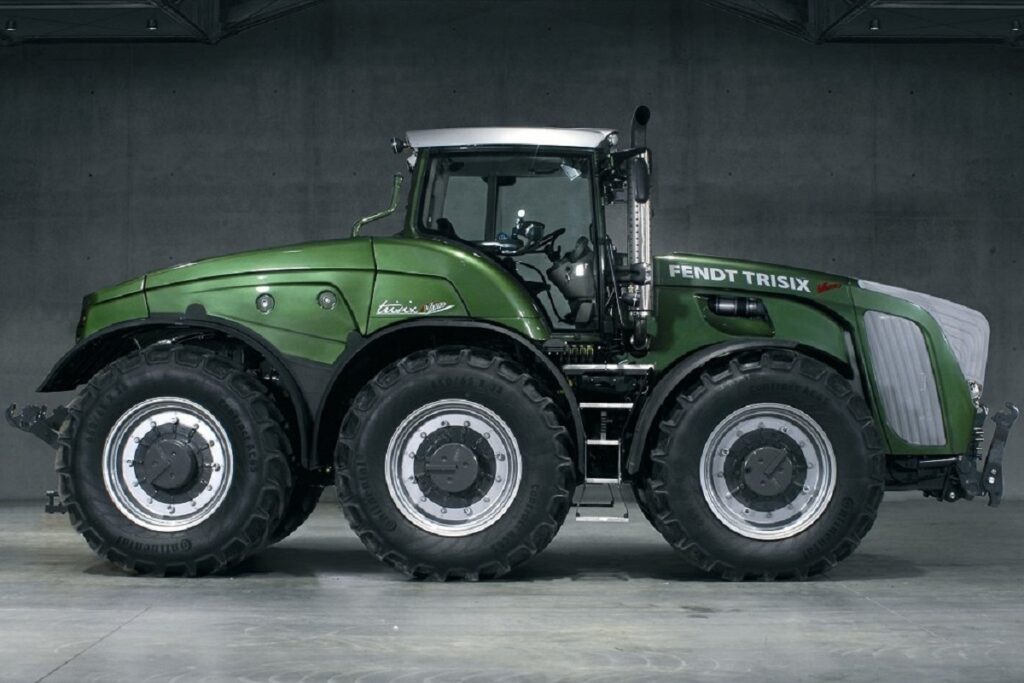

Three axles with six smaller tires to distribute weight
Two Vario continuously variable transmissions operating in parallel
A design aimed at combining traction efficiency with operational flexibility
This configuration enabled the prototype to deliver high power while maintaining the maneuverability and adaptability of wheeled tractors.
Key Technical Features
The TRISIX Vario incorporated several advanced systems:
Pressurized cooling system with high-capacity fan
Wet disc braking system
Central tire pressure control system
Independent wheel suspension
These features addressed both performance and durability requirements in high-horsepower applications.
From Prototype to Production
Although the TRISIX Vario never entered serial production, its development had a direct impact on future product lines.
Following field testing, collaboration with the tire industry enabled the development of larger, high-capacity tires. In parallel, Fendt advanced its transmission technology to handle significantly higher power levels.
As a result, several concepts introduced in the prototype were later integrated into the 1000 Vario series, including:
Advanced cooling system design
Single-wheel suspension concepts
High-power drivetrain architecture
A redesigned Vario transmission approach
Market Implications
The TRISIX Vario reflects a transitional phase in the agricultural machinery industry, when manufacturers were exploring new architectures to meet increasing farm scale and performance demands.
While the six-wheel concept itself did not reach commercialization, it accelerated the development of key technologies that enabled the current generation of high-horsepower wheeled tractors—now competing more effectively with tracked alternatives in large-scale farming operations.
