How It Works: New Holland T9.700 SmartTrax
The New Holland T9.700 SmartTrax is a high-horsepower articulated tractor equipped with a four-track system designed to maximize traction while reducing soil compaction. It combines a high-displacement engine, advanced power transmission options, and a high-capacity hydraulic system within a digitally integrated platform for large-scale field operations.
System Overview
The T9.700 SmartTrax is built around an articulated chassis with four independent track units, designed for high-draft applications such as tillage and seeding.
The operating principle is based on three core elements:
High torque delivery at low speeds
Maximum ground contact through tracks
Efficient power transfer to drawbar and hydraulic loads
Unlike wheeled tractors, the SmartTrax configuration prioritizes traction efficiency and soil protection under heavy loads.
Engine and Power Delivery
At the core of the tractor is the FPT Cursor 13, a 12.9-liter engine compliant with Tier 4B / Stage V emissions standards.
How the system operates:
The engine generates high torque at low engine speeds
Power is managed to maintain performance under heavy draft loads
Improved combustion efficiency reduces fuel consumption by approximately 2%
A key functional aspect is the torque optimization in lower gears, which allows the tractor to maintain pulling power without excessive fuel use.
Service intervals are extended up to 1,800 hours, reducing downtime in high-utilization environments.
Transmission and Power Transfer
The T9.700 offers two transmission architectures:
Ultra Command™ full powershift
Auto Command™ continuously variable transmission (CVT)
Functional differences:
Powershift delivers fixed gear steps for consistent high-load applications
CVT provides continuous ratio adjustment for optimized engine load and fuel efficiency
In both cases, the system ensures that engine output is efficiently transferred to the undercarriage, maintaining traction and minimizing slip.
SmartTrax Undercarriage System
The defining feature of the T9.700 SmartTrax is its four-track undercarriage.
Operating principle:
Each track increases the contact area with the ground
Weight is distributed across a larger surface
Ground pressure is reduced compared to wheeled configurations
Functional outcomes:
Improved traction under high draft loads
Reduced soil compaction
Greater stability in soft or variable soil conditions
The system also incorporates automatic belt tensioning, replacing manual adjustment and extending component life.
Transparent inspection panels (ClearTrack concept) provide direct visual access to critical components, simplifying maintenance.
Hydraulic System and Implement Control
The tractor is equipped with a high-capacity hydraulic system, with flow rates of up to 427 L/min using the optional MegaFlow™ II pump.
How it works:
Hydraulic power is supplied to implements requiring high flow (e.g., air seeders)
The system maintains consistent pressure under varying load conditions
Lift capacity reaches up to 10,319 kg, enabling operation with large implements
This allows the tractor to operate complex equipment while maintaining stable performance.
Fuel Capacity and Operating Autonomy
The T9.700 integrates a high-capacity fuel tank of up to 1,722 liters, approximately 47% larger than the previous generation.
Operational impact:
Extended working time without refueling
Improved efficiency in large fields
Reduced logistical interruptions during peak operations
Articulation and Maneuverability
The tractor uses a central articulation joint for steering.
How it functions:
The front and rear frames pivot relative to each other
Steering is achieved by changing the angle between both sections
Track alignment is maintained during turns
This configuration enables maneuverability despite the machine’s size, particularly in headland operations.
Operator Interface and Control Systems

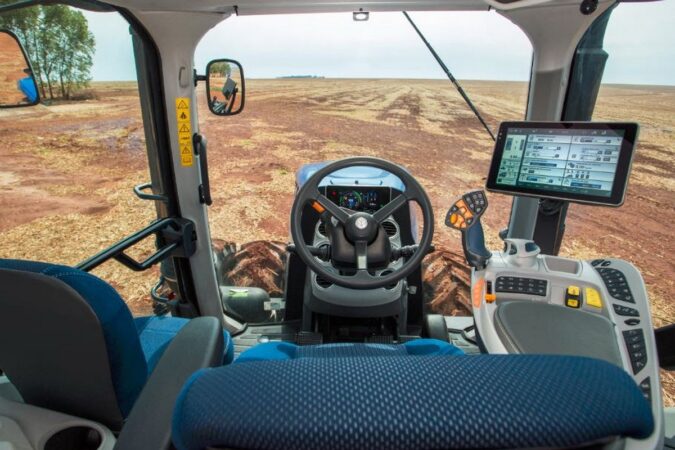

The cab integrates the SideWinder Ultra armrest and IntelliView 12 monitor.
Functional role:
Centralized control of tractor and implement functions
Real-time monitoring of performance parameters
Simplified adjustment of operating settings
A notable mechanical feature is the self-adjusting access ladder, which moves with the articulation angle to maintain safe access.
Digital Integration and Connectivity
The system is supported by PLM Intelligence.
How it operates:
Collects and transmits operational data
Enables remote diagnostics
Supports planning and optimization of field operations
This digital layer connects the tractor to broader farm management systems, improving decision-making and uptime.
Operational Logic in the Field
In practical terms, the T9.700 SmartTrax operates as a high-efficiency draft platform:
Engine delivers torque optimized for heavy pulling
Transmission adjusts power delivery to load conditions
Track system converts power into traction with minimal slip
Hydraulic system drives implements simultaneously
Digital systems monitor and optimize performance
All subsystems are designed to maximize pulling efficiency while minimizing soil impact.
Analytical Conclusion
The New Holland T9.700 SmartTrax combines high-power output with advanced traction management, addressing the key constraints of large-scale farming: soil compaction, efficiency, and uptime.
Its technical differentiation is centered on the integration of:
A high-torque engine platform
Flexible transmission architectures
A four-track undercarriage system
High-capacity hydraulics and digital connectivity
Together, these elements position the tractor as a specialized solution for high-load, large-area field operations, where traction efficiency and soil preservation are critical performance factors.
